Product Properties
Brand: yiteng cable
Model:

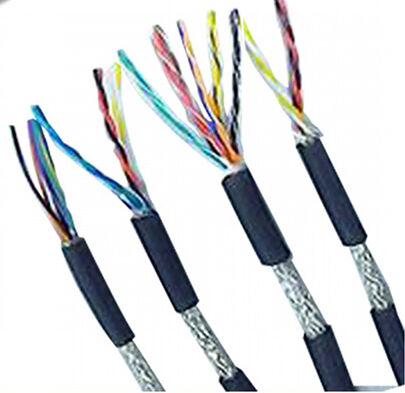

DJVPVP / DJYPV
UTP /STP/SFTP / LIYCY TP twisted paired cable with or without al foil and or braided mesh screen
LIYY / LIHH /LIHCH / YY /CY /SY multi core cable with or without al foil and or braided mesh screen or steel wire braided screen
Certification: CCC CE ISO BS ASTM UL VDE standard
Origin: hebei China
Pictures Show
Trading Information
Minimum order quantity: MOQ 3000 meters
price: FOB tianjin USD 0.5-25 per meter
Payment method: T/T L/C at sight DA DP Western Union
Supply Ability: 10000 meters per week
Delivery date: 15-25 days after payment
Conventional packaging: 100 meter per coil or as per requirement
VDE Standard Control Cable

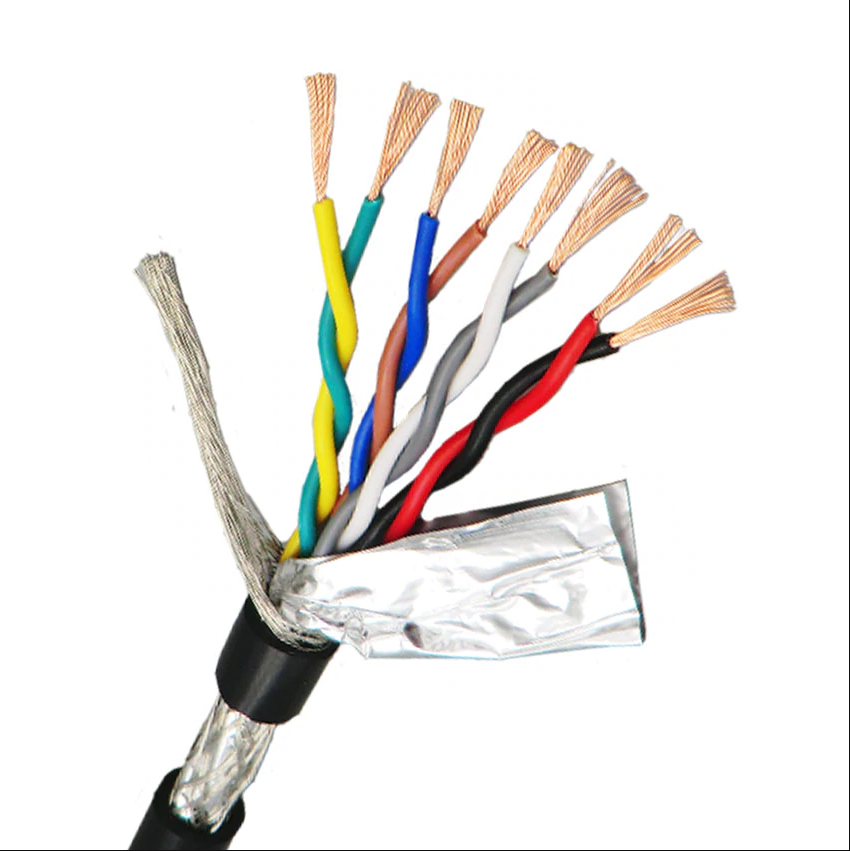

LiYCY (TP) Twisted Paired Control Cable
LiYCY Twisted Pair Shielded Signal and Control Cable DIN Color Coded
Application :
Data transmission cables used in
control and signal lines and in electronics
computer systems,
electronic control and regulation,
office machinery where cables of robust construction and relatively small outer diameter are required.
The overall screening protects against external electrical influences and ensures precise transmission.
LiYCY (TP) is a data transmission cable with particularly efficient screening against electromagnetic interference.
The pair-twisted conductors in this LiYCY reduce electrical cross-talk between adjacent pairs and this offers protection against capacitive influences by external electrical fields, which are for example caused by parallel running power cables.
Special Feature:
The twisted pairs are covered with a copper braid, which ensures an optimal screening against electrical interference.
Additionally the copper braid serves as a signal earthing to ensure fixed potentials. (TP) = twisted pair
Cable Structures:
Fine strands of plain copper wire,
PVC-based core insulation, cores twisted in pairs, pairs twisted in layers,
colour coded according to DIN 47100,
foil wrapping, screen braiding of tinned copper wire,
outer sheath of special PVC-based compound, flame-retardant according to VDE 0482, part 265-2-1/ IEC 60332-1 (according to VDE 0472 part 804 test type b), pebble grey (RAL 7032)or as per requirement.
Standards:
VDE 0812 and VDE 0814-SEV approved PVC control cables.
Conductor: Flexible in stranded bare copper according to VDE 0295/CL.5 and IEC 288/CL.5.
Insulation: PVC. acc.to DIN VDE 0207 part 4
Laying UP: Cores twisted into pairs – pairs twisted into layers.
Screen: Tinned copper wire braid – with tinned copper stranded draining wire (if requested).
Sheath: PVC Grey according to RAL 7001 or RAL 7032 on other colors
Minimum Bend Radius: 6 x cable diameter
Temperature range: -30°C to +70°C
Nominal Voltage: 250V
Test Voltage: 26 AWG: 1200V ， >26 AWG: 1500V
Inductance: Nominal 0.65 mH/km
Mutual Capacitance: Cond/cond.: 120 nF/km ， Cond/shield: 160 nF/km
Conductor Stranding: Fine Wire
Color Code: DIN 47100,
18 AWG (32/32) 1.0 mm2 LiYCY (TP) cable
| Number of Pairs |
Nominal Outer Diameter |
Approx Weight | ||
| inches | mm | lbs/mft | kg/km | |
| 2 | 0.406 | 10.3 | 95 | 142 |
| 3 | 0.409 | 10.4 | 116 | 173 |
| 4 | 0.445 | 11.3 | 142 | 212 |
| 5 | 0.465 | 11.8 | 179 | 266 |
21 AWG (16/32) 0.50 mm2 LiYCY (TP) cable
| Number of Pairs |
Nominal Outer Diameter |
Approx Weight | ||
| inches | mm | lbs/mft | kg/km | |
| 2 | 0.339 | 8.6 | 62 | 93 |
| 3 | 0.343 | 8.7 | 87 | 129 |
| 4 | 0.370 | 9.4 | 98 | 146 |
| 6 | 0.437 | 11.1 | 133 | 198 |
| 8 | 0.516 | 13.1 | 174 | 259 |
| 12 | 0.587 | 14.9 | 238 | 354 |
| 16 | 0.650 | 16.5 | 308 | 459 |
24 AWG (14/34) 0.25 mm2 LiYCY (TP) cable
| Number of Pairs |
Nominal Outer Diameter |
Approx Weight | ||
| inches | mm | lbs/mft | kg/km | |
| 2 | 0.276 | 7.0 | 36 | 54 |
| 3 | 0.280 | 7.1 | 44 | 66 |
| 4 | 0.299 | 7.6 | 54 | 81 |
| 6 | 0.335 | 8.5 | 77 | 115 |
| 8 | 0.406 | 10.3 | 87 | 130 |
| 10 | 0.433 | 11.0 | 106 | 158 |
| 12 | 0.445 | 11.3 | 128 | 190 |
| 16 | 0.492 | 12.5 | 160 | 238 |
| 25 | 0.634 | 16.1 | 231 | 344 |
26 AWG (18/38) 0.14 mm2 LiYCY (TP) cable
| Number of Pairs |
Nominal Outer Diameter |
Approx Weight | ||
| inches | mm | lbs/mft | kg/km | |
| 2 | 0.224 | 5.7 | 26 | 39 |
| 3 | 0.228 | 5.8 | 32 | 48 |
| 4 | 0.244 | 6.2 | 36 | 54 |
| 6 | 0.280 | 7.1 | 57 | 85 |
| 8 | 0.323 | 8.2 | 65 | 97 |
| 10 | 0.343 | 8.7 | 74 | 110 |
| 12 | 0.350 | 8.9 | 95 | 142 |
| 16 | 0.402 | 10.2 | 103 | 154 |
| 20 | 0.445 | 11.3 | 124 | 184 |
| 25 | 0.492 | 12.5 | 160 | 238 |
| 30 | 0.516 | 13.1 | 181 | 270 |
VS Chines Types in General Description:
| No. | Type | Description |
| 1 | DJYVP | Computer cable with Cu core, PE insulation, PVC sheath, copper wire braided general shielding |
| 2 | DJYVPR | Computer soft cable with Cu core, PE insulation, PVC sheath, copper wire braided general shielding |
| 3 | DJYPV | Computer cable with Cu core, PE insulation, PVC sheath, copper wire braided individual shielding |
| 4 | DJYPVR | Computer soft cable with Cu core, PE insulation, PVC sheath, copper wire braided individual shielding |
| 5 | DJYPVP | Computer cable with Cu core, PE insulation, PVC sheath, copper wire braided general & individual shielding |
| 6 | DJYPVPR | Computer soft cable with Cu core, PE insulation, PVC sheath, copper wire braided general individual shielding |
| 7 | DJYVP2 | Computer cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping general shielding |
| 8 | DJYVP2R | Computer soft cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping general shielding |
| 9 | DJYP2V | Computer cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping individual shielding |
| 10 | DJYP2VR | Computer soft cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping individual shielding |
| 11 | DJYP2VP2 | Computer cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping individual & general shielding |
| 12 | DJYP2VP2R | Computer soft cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping individual & general shielding |
| 13 | DJYVP3 | Computer cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping general shielding |
| 14 | DJYVP3R | Computer soft cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping general shielding |
| 15 | DJYP3V | Computer cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping individual shielding |
| 16 | DJYP3VR | Computer soft cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping individual shielding |
| 17 | DJYP3VP3 | Computer cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping individual & general shielding |
| 18 | DJYP3VP3R | Computer soft cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping individual & general shielding |
| 19 | DJYVP22 | Computer cable with Cu core, PE insulation, PVC sheath, copper wire braided general shielding, steel tape armor |
| 20 | DJYPV22 | Computer cable with Cu core, PE insulation, PVC sheath, copper wire braided individual shielding, steel tape armor |
| 21 | DJYPVP22 | Computer cable with Cu core, PE insulation, PVC sheath, copper wire braided individual & general shielding, steel tape armor |
| 22 | DJYVP2-22 | Computer cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping,general shielding, steel tape armor |
| 23 | DJYP2V22 | Computer cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping,individual shielding, steel tape armor |
| 24 | DJYP2VP2-22 | Computer cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping,individual & general shielding, steel tape armor |
| 25 | DJYVP3-22 | Computer cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping,general shielding, steel tape armor |
| 26 | DJYP3V22 | Computer cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping,individual shielding, steel tape armor |
| 27 | DJYP3VP3-22 | Computer cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping,individual & general shielding, steel tape armor |
| 28 | DJYVP32 | Computer cable with Cu core, PE insulation, PVC sheath, copper wire braided general shielding, steel wire armor |
| 29 | DJYPV32 | Computer cable with Cu core, PE insulation, PVC sheath, copper wire braided individual shielding, steel wire armor |
| 30 | DJYPVP32 | Computer cable with Cu core, PE insulation, PVC sheath, copper wire braided individual & general shielding, steel wire armor |
| 31 | DJYVP2-32 | Computer cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping,general shielding, steel wire armor |
| 32 | DJYP2V32 | Computer cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping,individual shielding, steel wire armor |
| 33 | DJYP2VP2-32 | Computer cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping,general & individual shielding, steel wire armor |
| 34 | DJYVP3-32 | Computer cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping,general shielding, steel wire armor |
| 35 | DJYP3V32 | Computer cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping,individual shielding, steel wire armor |
| 36 | DJYP3VP3-32 | Computer cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping, general individual shielding, steel wire armor |
Model types and specifications
twisted paired cable packing
100 meters per coil soft package or in wooden drum as per requirement
Our Service
One stop service
OEM and ODM acceptable
12month gurantee
lead time 15-25 days
Certificates : CE CCC ISO9001 ISO14001
