product name
Rubber Insulation and Sheath H07RN-F flex cable
H07RN-F EPDM INSULATION CPE SHEATH RUBBER SUBMERSILBE CABLE
Oil/Water resistant Flat PVC/RUBBER
3 core 4 Core 2.5MM electric Submersible deep well Pump Cable
product properties
Brand: yiteng
Model: YQ YQW YZ YZW
Certification: ISO CCC CE
Origin: hebei
Trading Information
Minimum order quantity: 1000meters
Price: FOB tianjin USD1-50 per meter
Payment method: T/T L/C DA DP Western Union
Supply Ability: 10000meters per week
Delivery date: 10-15 days after payment
Conventional packaging: 100meters per roll or in wooden drum
product description
Oil/Water resistant Flat PVC/RUBBER 3/4 Core 2.5MM electric Submersible deep well Pump Cable
Heavy Duty- Tough & Flexible
Excellent ozone and weathering resistance.
Excellent resistance to Acids & Alkalis, Aqueous Solutions, Industrial Fluids
Construction
Conductor
High purity electrolytic grade bright annealed flexible
bunched bare, copper conductor according to
international standards like IS 8130,BS 6360, IEC 228 & VDE 0295.
Insulation
Oil & Water Resistant Thermoplastic Rubber Compound (TPE/TPR)
Sheath
Heavy Duty Thermoplastic Rubber Compound (TPE/TPR)
Standards
BS 6007, IEC 60245, CEI 20-19, VDE 0282,AS 3191,
AS/NZS 5000.1, HD 22.1, NF C 32-201, French Standard 32-102-16
Working Voltage Uo/U
450/ 750 V, 600/ 1000 V, 650/1100 V
Test Voltage
2500V
Temperature Range
-40 ℃ to 90℃
>>>>>>>>
sales@cablesyt.com>>>>>>>>
| Core colors | (For Asian, African Markets) | (For European Markets) |
| 3 core | Red ,Yellow, Blue | Black, Blue, Brown |
| 4 core | Red ,Yellow, Blue, Green | Black, Blue, Brown, Green |
| Sheath color | Choice of Black or Blue | Choice of Black or Blue |
>>>>>>>>sales@cablesyt.com>>>>>>>>
Rubber 3 Core Flat Submersible Cable
| Number of cores x cross-section no. x sq mm |
Outer dimensions mm x mm |
Max. conductor resistance at 200C ohm /km |
Current carrying capacity at 400C amps. |
| 3 x 1.0 | 10.0 x 4.6 | 18.1 | 11 |
| 3 x 1.5 | 11.1 x 5 | 12.1 | 14 |
| 3 x 2.5 | 13 x 5.9 | 7.41 | 18 |
| 3 x 4.0 | 15.4 x 6.7 | 4.95 | 26 |
| 3 x 6.0 | 17.5 x 7.5 | 3.3 | 31 |
| 3 x 10 | 22.3 x 9.3 | 19.1 | 42 |
| 3 x 16 | 26.3 x 10.8 | 1.21 | 57 |
| 3 x 25 | 32.2 x 13.1 | 0.78 | 72 |
| 3 x 35 | 35.9 x 14.3 | 0.554 | 90 |
| 3 x 50 | 41.4 x 16.5 | 0.386 | 115 |
| 3 x 70 | 50.5 x 19.5 | 0.272 | 143 |
| 3 x 95 | 58.5 x 22.5 | 0.206 | 165 |
Rubber 4 Core Flat Submersible Cable (with Ground)
| Number of cores x cross-section no. x sq mm |
Outer dimensions mm x mm |
Max. conductor resistance at 200C ohm /km |
Current carrying capacity at 400C amps. |
| 4G x 1.0 | 12.6 x 4.6 | 18.1 | 11 |
| 4G x 1.5 | 14.2 x 5.0 | 12.1 | 14 |
| 4G x 2.5 | 16.5 x 6.0 | 7.41 | 18 |
| 4G X 4 | 19.7 x 6.7 | 4.95 | 26 |
| 4G X 6 | 22.7 x 7.7 | 3.3 | 31 |
| 4G X 10 | 28.6 x 9.4 | 19.1 | 42 |
| 4G X 16 | 34.3 x 11.0 | 1.21 | 57 |
| 4G X 25 | 4.2 x 13.2 | 0.78 | 72 |
| 4G X 35 | 47.4 x 14.7 | 0.554 | 90 |
| 4G X 50 | 55.0 x 16.8 | 0.386 | 115 |
| 4G x 70 | 65.7 x 20 | 0.272 | 143 |
| 4G x 95 | 76.4 x 23 | 0.206 | 165 |
Note:
Insulation thickness, Sheath thickness and overall dimensions are nominal values. The number of wires is approximate and strand diameter is nominal; they shall be such as to satisfy the requirements of conductor resistance as per IS 8130/1984, BS-6360, IEC-60228 & VDE-0295.
>>>>>>>>sales@cablesyt.com>>>>>>>>

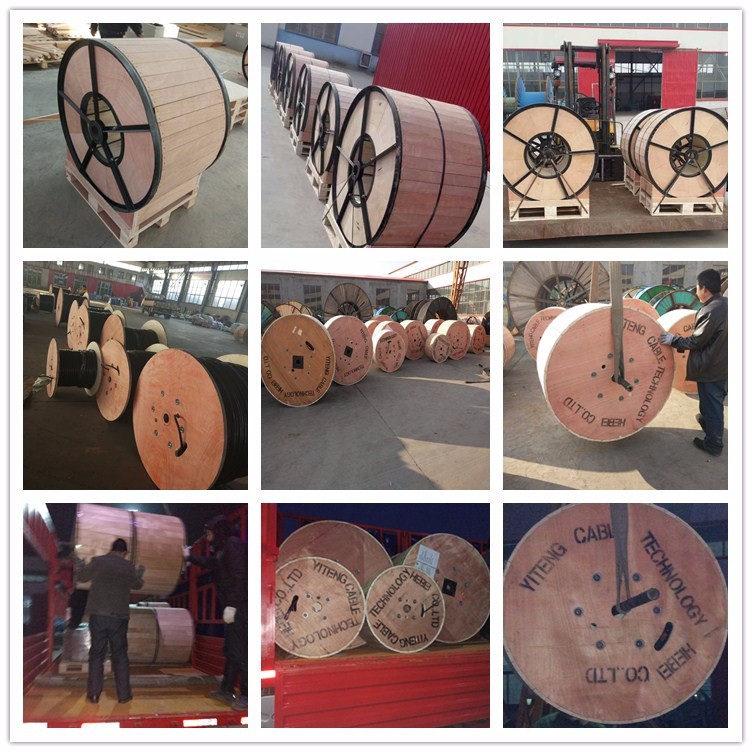

Packing
Standard Export package:
100m/roll,500m/roll,1000m/roll on the pallet or wooden drum
Delivery
Within -5-10 working Days once Order Confirmed
Port: Tianjin, or other ports as per your requireents.
Sea freight:FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency
>>>>>>>>sales@cablesyt.com>>>>>>>>

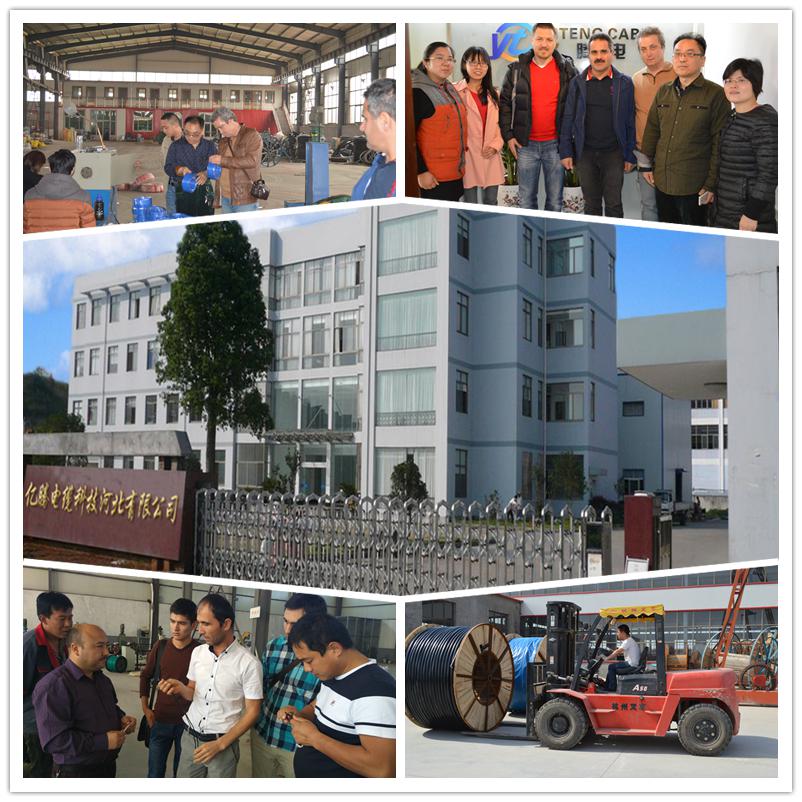

Factory pictures
Certificates
