Product Name

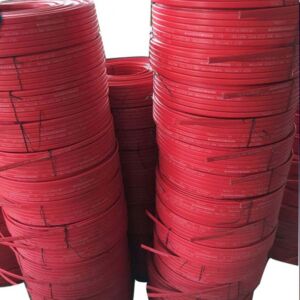

2 phase constant wattage heat tracing cable
Product Properties
Brand: yiteng
Model: RDP2-J3
Certification: ISO14001 ISO9001 CE CCC
Origin: hebei china
Trading Information
Minimum order quantity: 2000meters
Price: Fob tianjin USD 2-10 per meter
Payment method: T/T L/C DA DP Western Union
Supply Ability: 10000meters per week
Delivery date: 10-15 days after payment
Conventional packaging: 100meters per roll
Product Description
RDP CONSTANT POWER PARALLEL TYPE HEAT TRACING TAPE (SINGLE-PHASE220V)
Brief
This cable also called as parallel connection of multi-heating junctions in the whole body
Single phase constant power heat tracing tape is used in antifreezing and heat preservation of various pipeline and instruments,
with max. maintenance temp 150℃, as well as zone of explosive gas places in the factory
Features and applications
Rated voltage: 220V
Normal insulation resistance:≥20MΩ
Dielectric test:2000V 50Hz/1min
Insulation material: F46
Max withstand temp 205℃
Explosion-proof marks: eII T4
Type of protection: IP54
Application
1.avoid medium freeze due to flow stop
2.heat tracing and preservation of lquid pipeline
3.anti freeze of water supply pipeline
4.costal well pipline heat trcing preservation
5.heat tracing of general pipeline and instument
6.heat tracing of oil well head tree
7.antifreezing maintenance for concrete fabricated part
Specifications and main technical features
| G Type | R type | Rated power (W/M) | Max.L(m) | Max fluid temp | Color |
| RDP2-J3-10 | RDP2Q-J3-10 | 10 | 210 | 150 | Black |
| RDP2-J3-20 | RDP2Q-J3-20 | 20 | 180 | 120 | Red |
| RDP2-J3-30 | RDP2Q-J3-30 | 30 | 150 | 90 | Red |
| RDP2-J3-40 | RDP2Q-J3-40 | 40 | 140 | 65 | Brown |
| RDP2-J3-50 | RDP2Q-J3-50 | 50 | 100 | 60 | Brown |
RDP2-J3-10 means：insulation material F46 fluoroplastic, 10W/m single-phase general type constant power heating tape
RDP2Q-J3-10 means: insualtion material F46 fluoroplastic, 10W/m single-phase reinforced type constant power heating tape
Structure and working principal
Power buss wire consists of 2 parallel insulation copper wires with heating wires winded to
inner insulation layer, heating wires be connected to buss wires every certain distance which
forms continous parallel resistances, After power on buss wires, all parallel resisatances will heat and form a continous heating tape
