Product Name
PVC insulation PUR sheath Coiled Curly Spiral Cord
product properties
Brand: Yiteng
Model: YT S 4c1.0
Certification: CE CCC ISO9001 ISO14001
Country of Origin: China
Trading Information
Minimum order quantity: 300 pcs
Price: FOB tianjin USD 1- 50 per pcs
Payment method: T/T L/C DA DP Western Union
Supply Ability: 1000 pcs per day
Delivery date: 15-25 days after payment
Conventional packaging: In paper carton
product description
PVC PE TPE insulation TPR PU PUR sheath spring spiral cable
Multi Cores PU Coiled Spiral Power Cable With Customized Cable Specifics
Application:
Machine Construction
Electrical Tools
Building Industry
Handling Equipment
Entertainment Equipment
Medical devices
Measurement instruments
Rolling doors
Technical data
| PVC PE insulation PU PUR sheathed Temperature range -25°C to +70°C Nominal voltage H05BQ-F: U0/U 300/500 V H07BQ-F: U0/U 450/750 V Test voltage H05BQ-F: 2000 V H07BQ-F: 2500 V Expansion ratio 1:4 straight ends in each case 200 mmCable Structure PLAIN copper, fine wire conductor fine wire stranded EPDM PVC PE Core insulation VDE approved cable PUR outer sheath Sheath colour any |
PVC PE insulated and sheathed Temperature range flexing -5°C to +70°C Nominal voltage H03VV-F: U0/U 300/300 V H05VV-F: U0/U 300/500 V Test voltage 2000 V Expansion ratio 1:3 straight ends in each case 200 mmCable Structure Bare copper, fine wire conductors to VDE 0295 cl. 5 PVC Core insulation Cores Stranded Cores colour coded to VDE 0293 PVC outer sheath sheath color any |
Structure & Specifications:
Conductor: multi-strands copper or tinned copper
Cores: 1-37 cores
Cross section:0.12– 4 mm2
Insulation material: PVC/PE/PP
Sheath material: PU/TPU/PP/PVC/TPE
Diameter: 11-13.5mm or as customer’s options
Expanding length: 1.0 m-25.5m
Color: black or as customers’ request
Operating temperature: according to customer requirements, cold -65 degrees; temperature 80 degrees, 105 degrees, 125 degrees
Spring Length: arbitrary (customized according to customer requirements)
Good flexibility and elasticity
Elongation length of up to 3.5-4 times the original length of spring. Have good cold resistance, flame resistance, oil and abrasion resistance. Occasions according to different requirements of production of various kinds of spiral-type spring line.
Rated temperture: -40℃~80℃
Note
AWG sizes are approximate equivalent values.
The actual cross section is in mm2
Also in axial construction
On request closed spiral lengths up to max 5000 mm possible.
Spiral Cables can be customised to suit your requirements.
In-house manufacturing allows for short lead times.

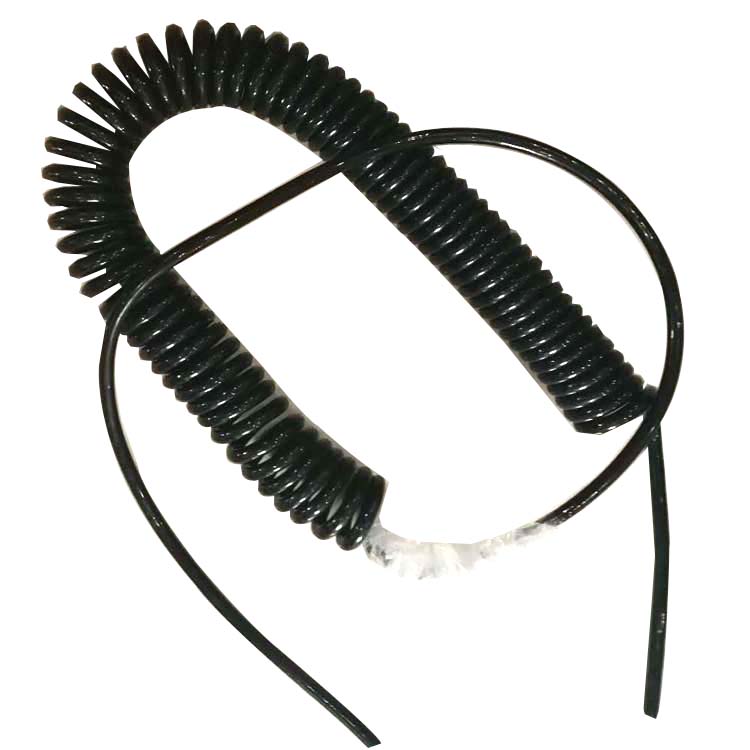

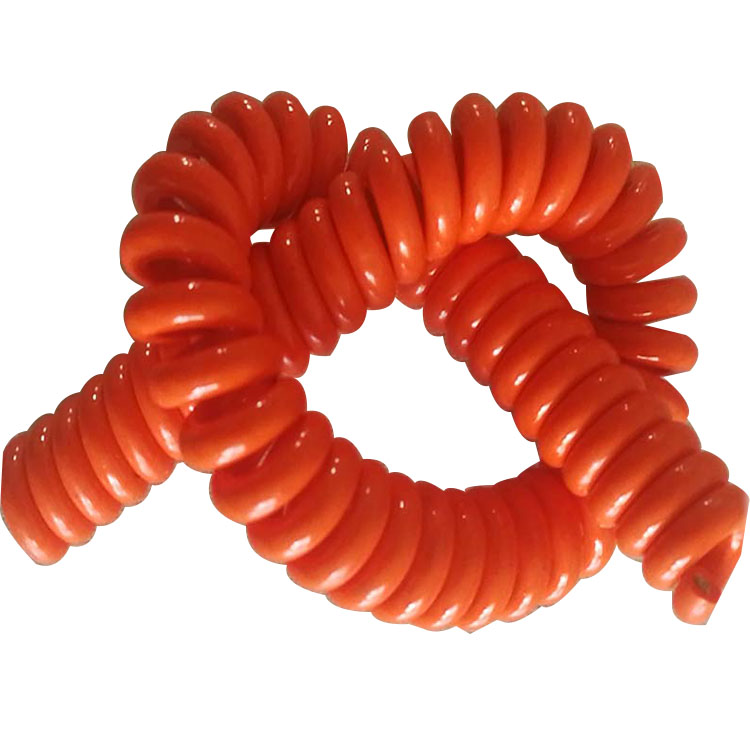

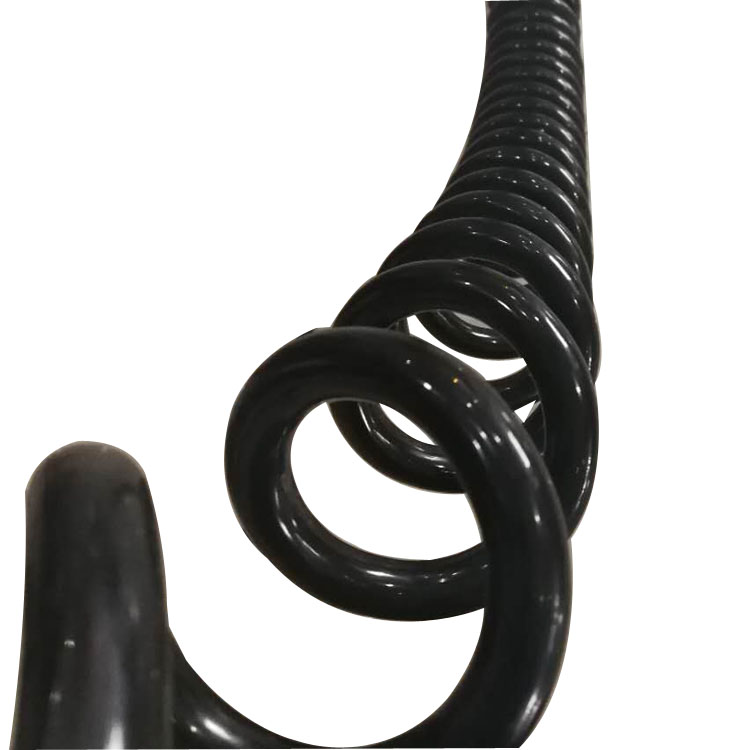

Photos of Spiral Cable for your referrence:

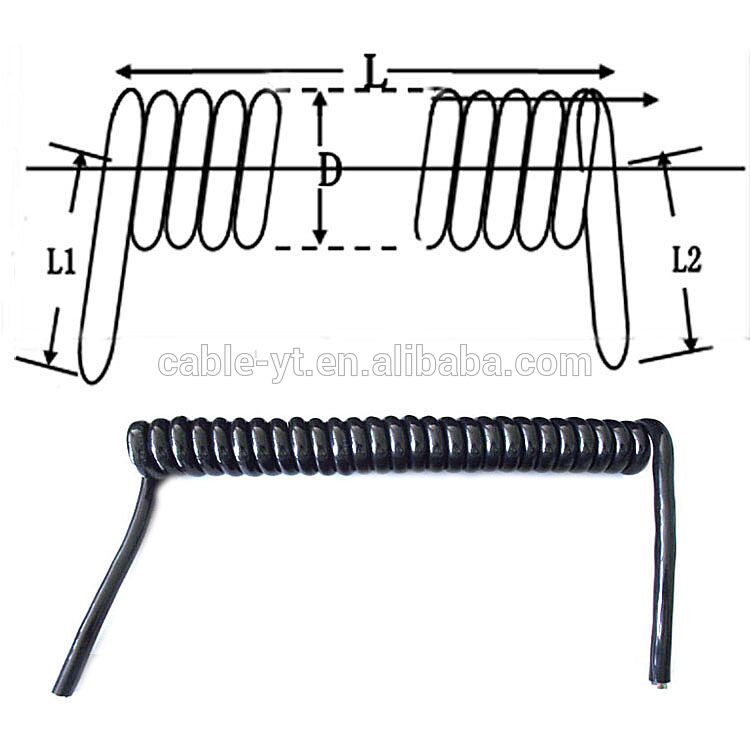

For Customized Spiral cables pls advise the following items data sheet
Number of conductors : say : 4 core
And each copper core cross sectional area or conductor stuctures: say 18strands/0.1mm 16AWG Etc.
D0= the Sprial diameter say : 20mm
D = the straight wire diameter say: 8mm
L0 = closed sprial length say: 250mm
L = extracted max working length often – 3-4 times the length of L0 say 1000mm
L1 and L2 the tails length say: 150mm and 200mm
We are professional and manufacture all kinds of coiled cord, spiral cable, spring cord, retractable wires with good quality and competitive price. For more information, welcome to send a message to us here !
Good quality VS bad quality cables
