6-10kV AL XLPE PVC

product name
6/10kV AL/XLPE/PVC(or PE) Power Cable
YJLV 1C
YJLV 3C

product properties
Brand: yiteng brand
Model: YJLV
Certification: CE ISO9001 ISO14001 CCC
Origin: hebei china

Trading Information
Minimum order quantity: 1000meters
Price: FOB tianjin USD 0.5-50 per meter
Payment method: T/T L/C DA DP Western Union
Supply Ability: 10000 meters per week
Delivery date: 15-25 days after payment
Conventional packaging: In wooden drum, As per requirement

product description
Description

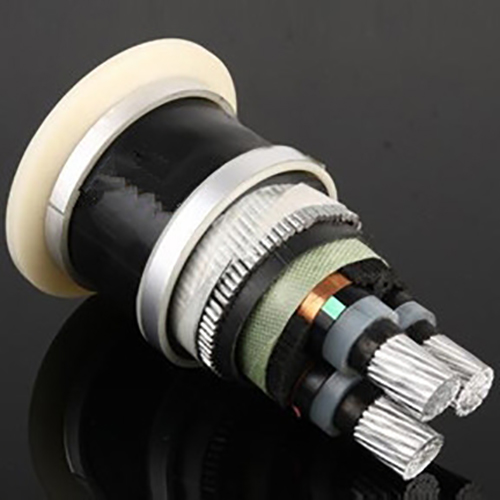

Construction: Compacted stranded circular aluminium conductor, extruded semi-conducting compound as conductor screen, cross-linked polyethylene(XLPE) insulation, semi-conducting compound as insulation screen, copper tape or combination of copper wire and tape as metallic screen, three cores assembled together with non-hygroscopic polypropylene filler, wrapped with binder tape, PVC or PE outer sheath.

U0 is the rated power frequency voltage between conductor and earth or metallic screen for which the cable is designed;
U is the rated power frequency voltage between conductors for which the cable is designed;
Um is the maximum value of the “highest system voltage” for which the equipment may be used.
Max. permissible continuous operating temperature of conductor: 90 °C
Max. temperature of conductor during short-circuit (5s max. duration) shall not exceed: 250 °C
The ambient temperature under installation should not be lower than: 0 °C

The bending radius of cable is recommended as following:
For single core cable: not less than 20 times of the diameter of cable
For three core cable: not less than 15 times of the diameter of cable

Application
The cable is used for fixed installations such as electric power distribution networks or industrial installations, which is laid indoors, outdoors, in tunnel or in cable trench, unable to bear external mechanical force.
Single core cable in magnetic duct is not permissible.

Manufacturing Standards GB/T 12706-2008, IEC 60502-2
