product name
PVC insulated copper electric wire
autotune car wiring wire automotive electrical wire car wire

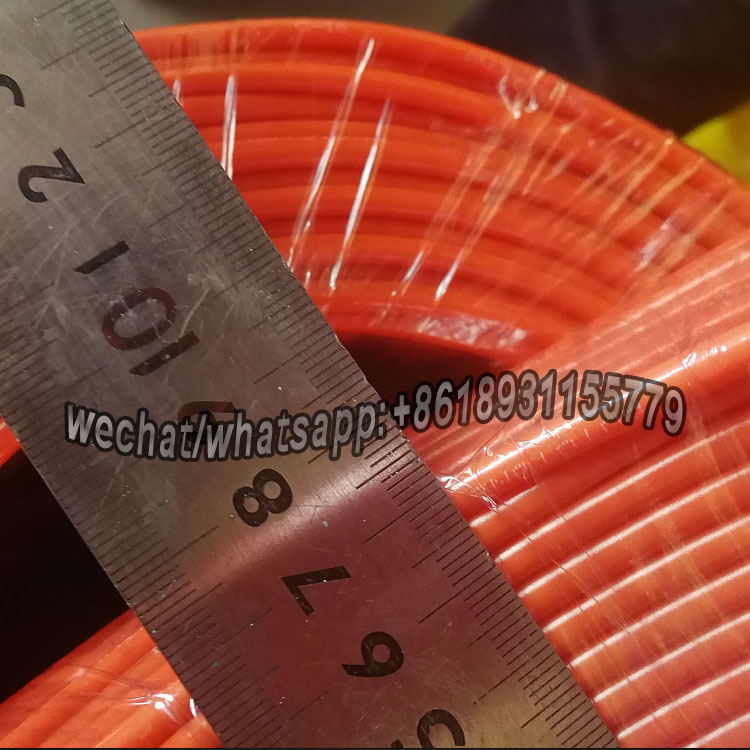

stranded copper flexible wire
pvc insulation 70 deg c max working temp
product properties
Brand: Yiteng cable
Model: BV RV RVS VV BLV RLV RVS VLV
Certification: CCC CE ISO9001 ISO14001 Nom BS JS ASTM UL CUL
Origin: hebei china
Trading Information
Minimum order quantity: 10000 meters
Price: 0.1-10 per meter
Payment method: T/T L/C DA DP Western Union
Supply Ability: 100000 meters per week
Delivery date: 15-25 days after initial payment
Conventional packaging: Pp tape then in paper box then on pallet, Or as per clients requirement
product description
Description
PVC insulated wire belong to the series of laying electric wires, which is mainly suitable for laying at the fixed places. It is widely used as connectors of drive, lighting, electric equipment, instrument and telecommunication equipment with rated voltage 450/750V or below. Part of the plastic wires are used at the equipment with AC rated voltage 300/300V or below.
Features
1. The rated voltage U0 / U 450v /750 V, 300 V 500 V 600 V 12 V DC 32 V DC
2. Cable conductor long-term work for 70/ 90 /105 ° C temperature of cable
3. The smallest bending radius is six times the diameter of cable
4. Cable shall not be in the sunlight long exposure
5. The bottom line of cable core must good grounding
Application
Used in electronics, instruments and electronic equipment and automatic generation device with the power cord, line and signal transmission lines, concrete can be used for anti-theft alarm system, building talk back system, instrument and meter, and monitoring control such as the installation of surveillance.

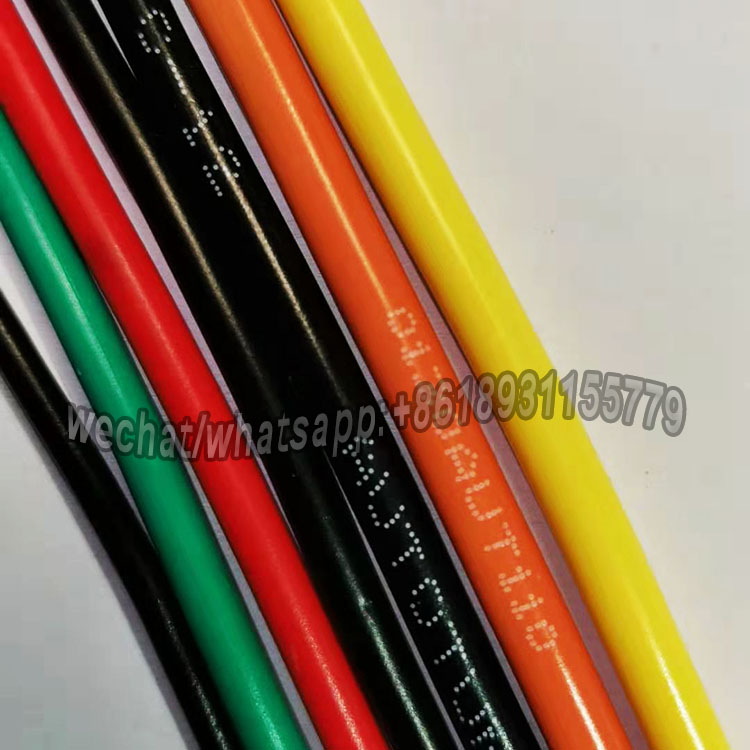

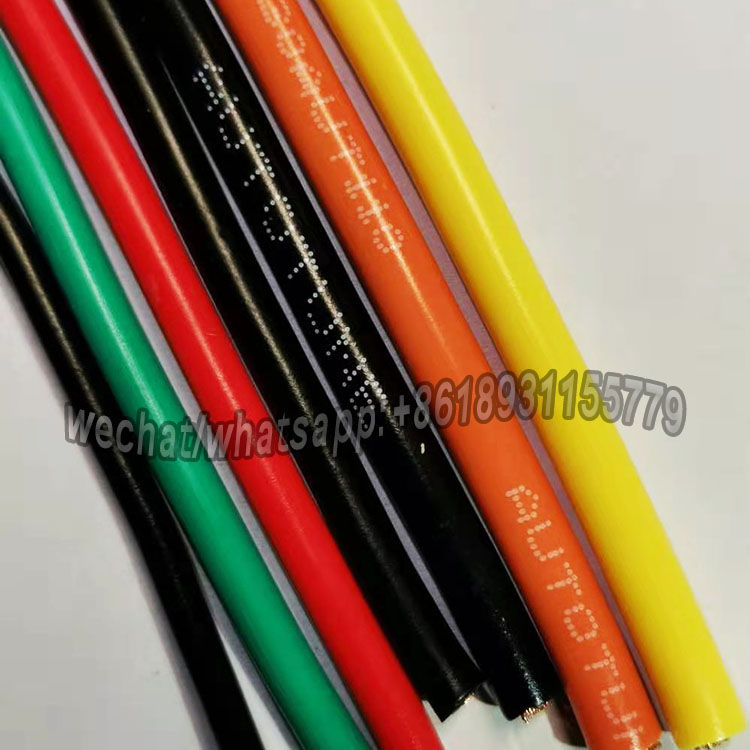

Data for 10#/12#/14#/16#/18# AWG car wiring wire
| auto car wiring wire rv | |||||
| Cross sectional area sqmm | Type | Strands/diameter No/mm | PVC insulation thickness mm | Outer Overall Diameter mm | Appr weight Kg/KM |
| 3.545 | 10# | 113/0.20 | 1.15 | 4.59 | 5.4 |
| 2.245 | 12# | 72/0.20 | 1.16 | 4.04 | 3.6 |
| 1.475 | 14# | 47/0.20 | 1 | 3.42 | 2.6 |
| 0.9453 | 16# | 30/0.20 | 0.9 | 2.76 | 1.6 |
| 0.5908 | 18# | 19/0.20 | 0.7 | 2.25 | 1.1 |
Manufacturing Standards GB/T 12706-2008, IEC 60502-2

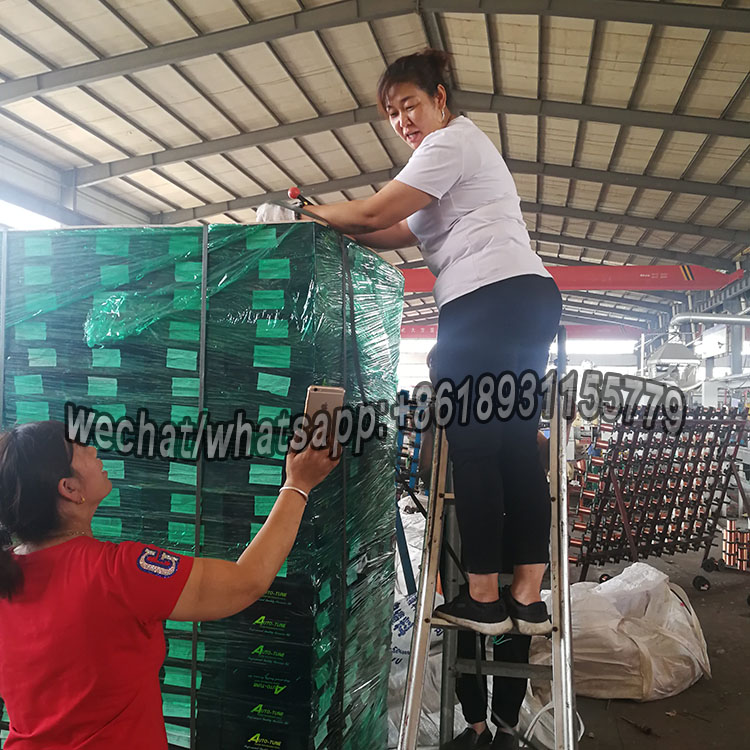

Packing

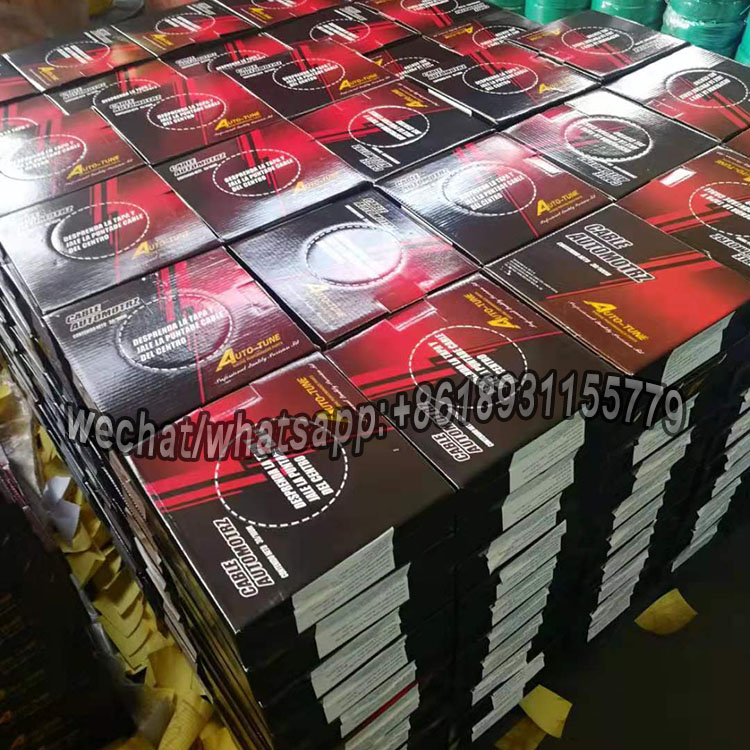

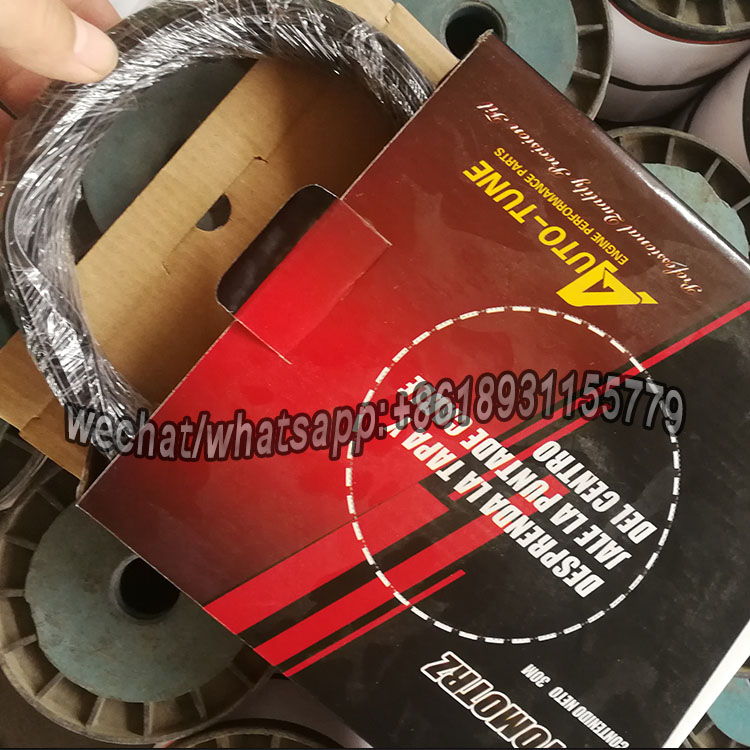

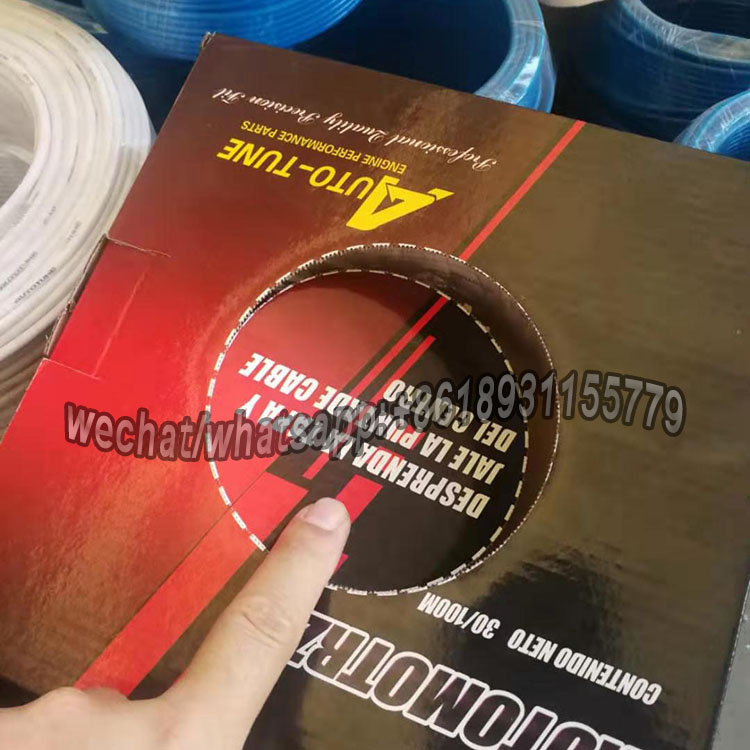

packed in specially designed paper box easy to be used

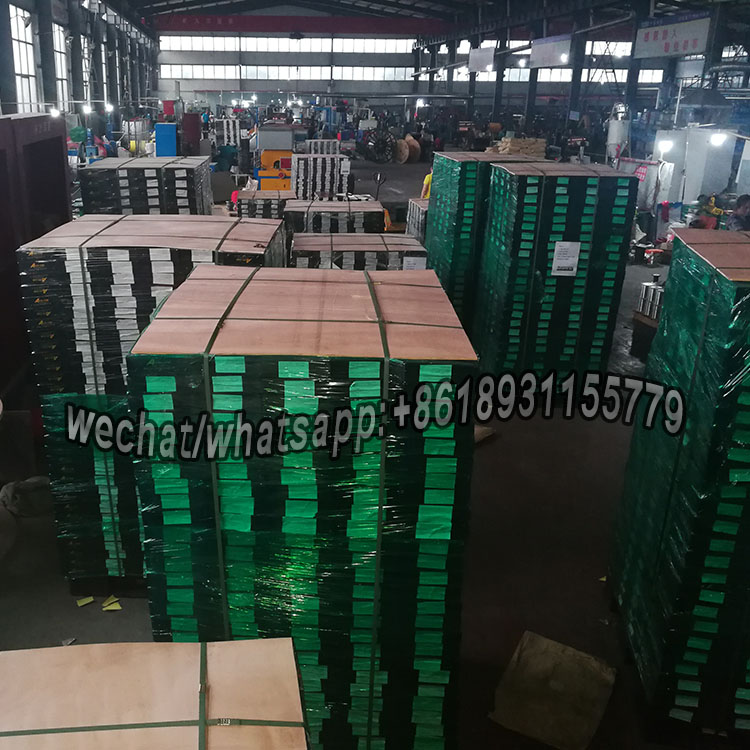

then 200/500 boxes on a pallet
