product name

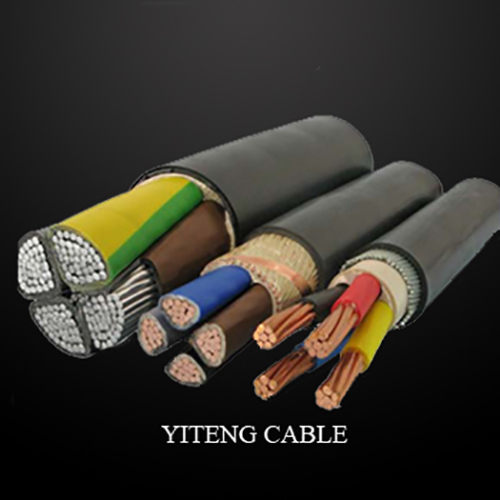

0.6/1kv copper pvc power cable
1C 16 SQMM
3 C 35 SQMM
4C 50 SQMM
product properties
Brand: yiteng brand
Model: VV VLV
Certification: ISO9001/ ISO14001 / CE / CCC
Place of Origin: Hebei China
Trading Information
Minimum order quantity: MOQ: 1000 meters
Price: USD 0.1-100 per meter
Payment method: DA DP L/C T/T Western Union
Supply Ability: 10000 meters per day
Delivery date: Leadtime 15-20 days after payment
Conventional packaging: Soft pp tape wrap then on pallet, Steel wooden or wooden drum, As per customer need
product description
Operating Characteristics
Rated voltage: 0.6/1(1.2)kV
Max. permissible continuous operating temperature of conductor: 70oC
Max. temperature of conductor during short-circuit (5s max. duration) shall not exceed:
Nominal cross section of conductor ≤300mm2: 160 oC;
Nominal cross section of conductor >300mm2: 140 oC
The ambient temperature under installation should not be lower than: 0 oC
The bending radius of cable is recommended as following:
For single core cable: not less than 20 times of the diameter of cable
For multi-core cable: not less than 15 times of the diameter of cable
Application
The cable is used for fixed installations such as electric power distribution networks or industrial installations, which is laid indoors, in tunnel, in cable trench or in conduit, unable to bear external mechanical force.
Manufacturing Standards
GB/T 12706-2008, IEC 60502-1
Description
| Type | Description | No. of cores | Nominal cross section of conductor |
| VV | Copper conductor/PVC insulation/PVC outer sheath Power Cable | 1, 2, 3, 4, 3+1, 5, 4+1, 3+2 |
1.5~800mm2 |
| VY | Copper conductor/PVC insulation/PE outer sheath Power Cable | 1, 2, 3, 4, 3+1, 5, 4+1, 3+2 |
1.5~800mm2 |
| ZA-VV ZB-VV ZC-VV | Copper conductor/PVC insulation flame-retardant Power Cable | 1, 2, 3, 4, 3+1, 5, 4+1, 3+2 |
1.5~630mm2 |
| NH-VV | Copper conductor/PVC insulation fire-resistant Power Cable | 1, 2, 3, 4, 3+1, 5, 4+1, 3+2 |
1.5~800mm2 |
